EC5 to 2P Rectangular DC Connector Cable Power Wire for LiFePO4 Battery, Inverter, Solar Generator, Portable DC Systems

Großes Bild : EC5 to 2P Rectangular DC Connector Cable Power Wire for LiFePO4 Battery, Inverter, Solar Generator, Portable DC Systems

Produktdetails:

Herkunftsort:	China
Markenname:	KUNCAN
Modellnummer:	KC-EC5-ADS

Zahlung und Versand AGB:

Min Bestellmenge:	500 Stück
Preis:	$1.63/pieces 500-999 pieces
Verpackung Informationen:	PE-Tasche + Karton
Lieferzeit:	16days
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

EC5 to 2P Rectangular DC Connector Cable Power Wire for LiFePO4 Battery, Inverter, Solar Generator, Portable DC Systems

Beschreibung

Hervorheben:

Power Wire EC5 to 2P Cable

LiFePO4 Battery EC5 to 2P Cable

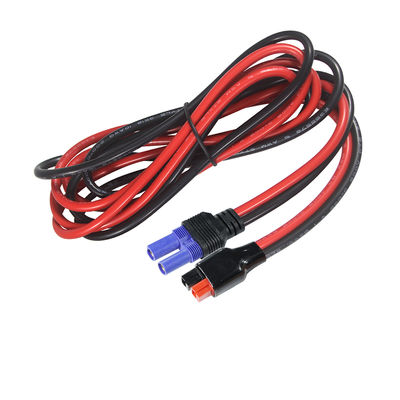

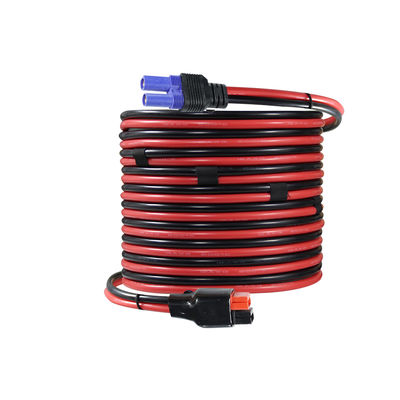

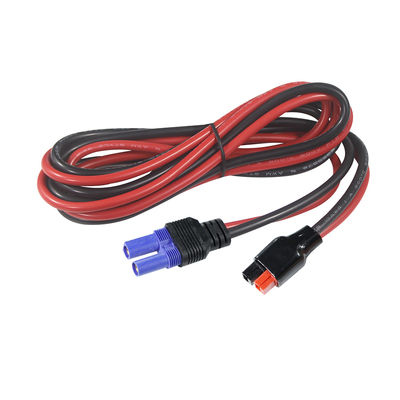

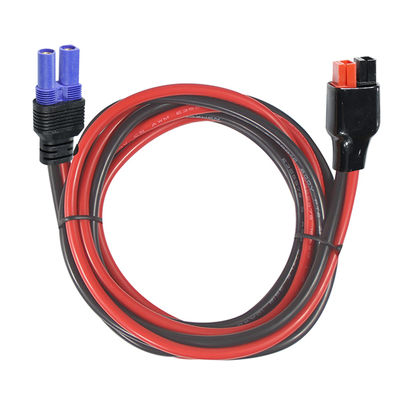

EC5 to 2-Pin High Current Rectangular DC Connector Cable – 12AWG Power Wire for LiFePO4 Battery, Inverter, Solar Generator, Portable DC Systems

Product Description

Technical Specifications

Parameter	Description
Product Name	EC5 to 2-Pin High Current Rectangular DC Connector Cable

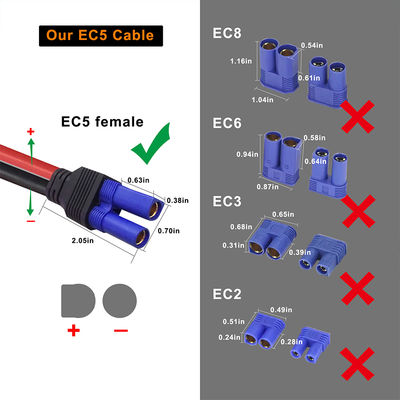

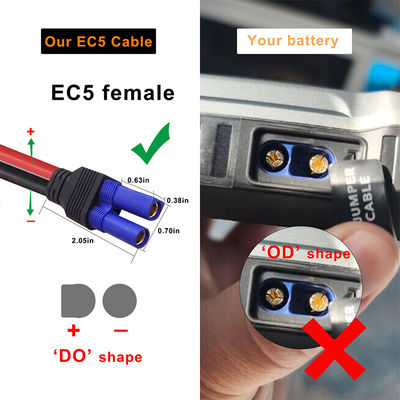

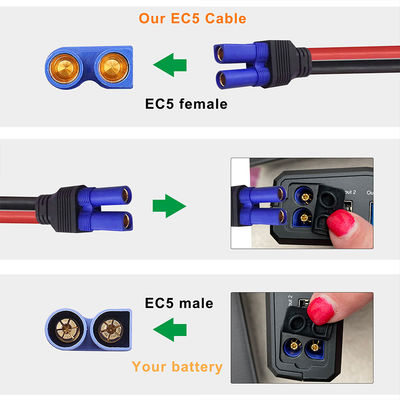

Connector A	EC5 Plug (Blue, 5.0mm Bullet, Male or Female)
Connector B	2-Pin Rectangular High Current DC Plug (Custom Mold Available)
Rated Voltage	Up to 48V DC (Typical), Max 600V (Connector Rated)
Rated Current	Up to 50A (depends on wire gauge and connector type)
Cable Type	Tinned Copper, Flexible PVC or Silicone Jacket
Wire Gauge	12AWG / 10AWG / 8AWG
Cable Length	30cm / 50cm / 1m / Custom
Polarity	Red = Positive, Black = Negative
Operating Temp	–20°C ~ +85°C

Product Introduction

This EC5 to 2-Pin Rectangular DC Connector Cable is engineered for high-current DC transmission, making it ideal for LiFePO4 battery packs, inverters, solar power stations, and DC appliances. It offers a secure and reliable link between standard EC5 battery terminals and industrial-grade 2-pin high-amperage rectangular DC connectors, widely used in power banks, energy storage, and off-grid solutions.

Key Features

High Current EC5 to 2-Pin Rectangular Connector
Secure Plug Design – Rectangular connector ensures anti-reverse polarity fit
Tinned Copper Conductors – Stable, low-resistance power delivery
Flexible Jacket – Silicone or PVC for bendable installation
Wide Voltage Support – Up to 48V nominal DC systems

Compatible Applications

LiFePO4 or Lithium Battery Packs
Portable Solar Generators / Power Stations
DC to AC Inverter Power Input
RV / Trailer / Marine Electrical Systems
DIY High-Current Projects

Safety & Usage Notes

Ensure correct polarity before connecting
Use matching rated fuse upstream if required
Do not use in wet or high-heat environments without protective casing
Confirm connector fit to avoid arcing during connection

OEM / ODM Customization Options

Option	Description
2-Pin DC Plug Style	Rectangular Locking / Custom Mold / Panel-Mount Style
EC5 Gender	Male / Female
Wire Gauge	14AWG / 12AWG / 10AWG / 8AWG
Jacket Material	PVC / Silicone / Nylon Braid
Length Options	0.3m / 0.5m / 1m / 2m / Custom
Branding	Heat shrink logo / Cable tag / Printed label
Packaging	Polybag / Label Bag / Blister Box

EC5 to 2P Rectangular DC Connector Cable Power Wire for LiFePO4 Battery, Inverter, Solar Generator, Portable DC Systems 0

FAQ

Frequently Asked Questions (FAQ)

Q1. Are you factory or trade company?

A: We are factory of more than 16 years export experience.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. Samples ?

A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.

Q5. What is delivery time if we place an order?

A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q7. How to ship out the cargo?

A: At your request, by sea, by express, all are available.
