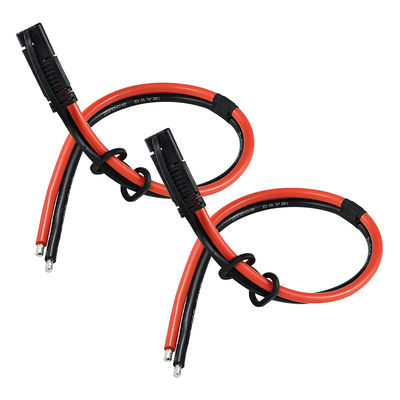

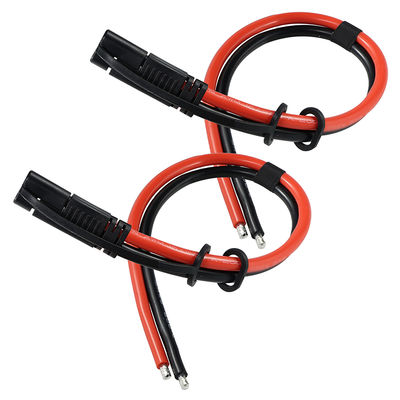

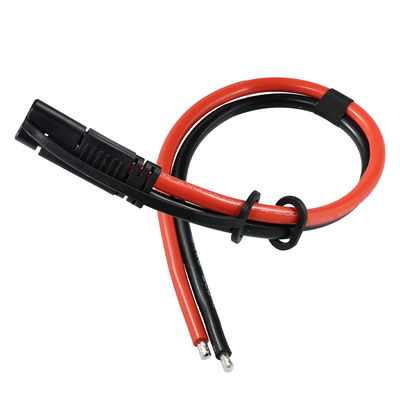

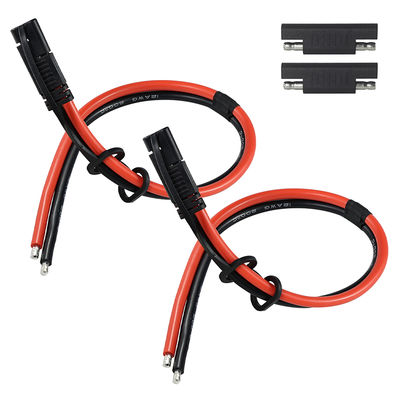

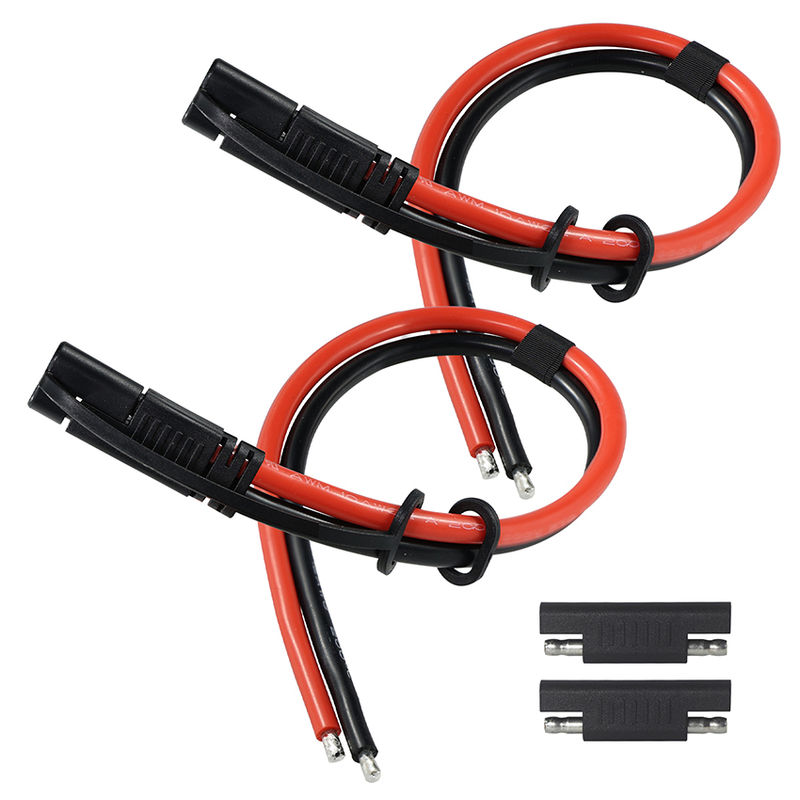

Heavy-Duty SAE to Tinned Copper Pigtail Cable | [14 AWG] 2-Pin Quick Disconnect for Solar & Automotive SAE connector
Detailed Technical Specifications
| Model Number |
KC-SAE-ST |
| Connector A |
SAE 2-Pin Connector |
| Connector B |
Tinned Copper Bare Wire Ends |
| Wire Gauge |
[14 AWG] |
| Wire Type |
Tinned Copper (for superior corrosion resistance) |
| Conductor Core |
41 Strands x 0.254 mm |
| Cable Length |
[30cm (12 inches)] (Custom lengths available on request) |
| Voltage Rating |
12V - 24V DC |
| Maximum Current Rating |
[15A] Continuous |
| Polarity Standard |
Red Wire: Positive (+), connects to SAE Female/Covered Pin.
Black Wire: Negative (-), connects to SAE Male/Exposed Pin. |
| Jacket Material |
Durable, sunlight-resistant PVC |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Compliance |
RoHS Compliant |
Product Introduction
Build reliable, high-performance power connections with our Heavy-Duty SAE Pigtail Cable. This essential component is engineered to provide a secure and convenient quick-disconnect point in any 12V or 24V DC system. Featuring a robust [14 AWG] tinned copper wire and a standard 2-pin SAE connector, it's the ideal choice for creating custom wiring harnesses, battery charger leads, and solar panel connections. The pre-tinned bare ends are ready for easy soldering or crimping, saving you time and ensuring a solid electrical bond for your automotive, marine, or off-grid power projects.
Key Specifications
- Connector Type: Industry-Standard 2-Pin SAE Quick Disconnect
- Wire: [14 AWG] Heavy-Duty Tinned Copper
- Ends: Pre-Tinned Bare Wires for custom integration
- Rating: 12V-24V DC, up to [15A]
- Primary Use: Battery Tenders, Solar Panels, RV & Automotive Accessories
Color & Dimensions
Color Coding for Safety:
- Positive (+): Red Wire Jacket
- Negative (-): Black Wire Jacket
Physical Dimensions:
Standard Cable Length: [30cm / 12 inches].
As a direct manufacturer, we specialize in OEM/ODM orders. Contact us to produce cables at the exact length your project requires.
Product Features
- Industry-Standard Quick Disconnect The molded SAE connector provides a fast, reliable, and weather-resistant method for connecting and disconnecting power lines. Ideal for battery chargers, portable solar setups, and modular accessories.
- Superior Tinned Copper Wire Constructed with [14 AWG] tinned copper wire to handle higher currents with minimal voltage drop. The tin coating provides excellent corrosion resistance, dramatically extending the cable's life compared to standard copper, especially in outdoor or marine environments.
- Pre-Defined Polarity Wired to the common standard with the red (positive) wire connected to the female/shrouded SAE pin, this cable helps prevent accidental reverse polarity connections that can damage sensitive electronics.
- Ready for Integration The bare wire ends are expertly tinned, making them easy to solder to circuit boards or crimp into a wide variety of terminals for seamless integration into your custom wiring harness or product.
Applications
A fundamental building block for manufacturers, installers, and hobbyists. This SAE pigtail is perfect for:
- Solar Power Systems: Creating connection leads from solar panels to charge controllers or batteries.
- Automotive & Powersports: Making custom leads for battery tenders, heated gear, GPS units, and other 12V accessories.
- RV & Marine: Wiring for trolling motors, auxiliary power systems, and portable power stations.
- OEM Manufacturing: Integrating a quick-disconnect power input into new electronic products.
- DIY Projects: Any low-voltage DC application requiring a robust and removable power connection.
Safety & Polarity Information
CRITICAL: Polarity Verification Recommended
This cable follows the most common SAE wiring standard (Red/+ to Female/Covered pin). However, there is no official governing body for SAE polarity. Before connecting, we strongly advise using a multimeter to verify the polarity of your existing equipment to prevent damage.
Best Practices for Installation:
- Fuse Your Circuits: Always install an appropriately rated fuse (e.g., 15A or less for this cable) on the positive line as close to the power source as possible.
- Secure Connections: Ensure all splices are properly crimped or soldered and sealed with heat-shrink tubing for a durable, weather-resistant connection.
