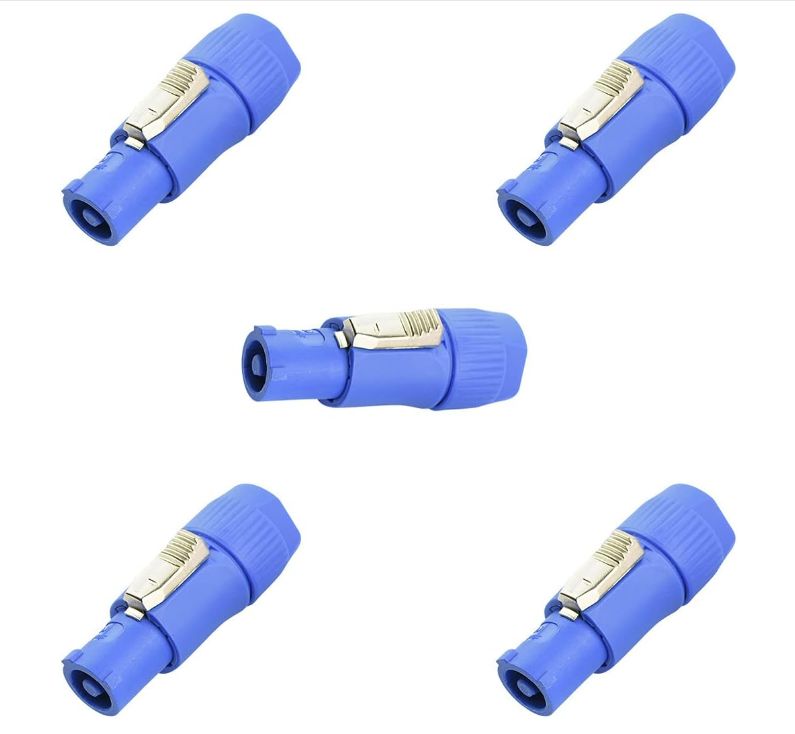

Blue Power-In NAC3FCA 20A 250V Powercon Lockable Cable Connector
20A 250V Power-In Lockable Cable Connector | For Stage & AV
Your Reliable Locking Power Jumper and Stage Power Link Cable
- Secure Locking System: A robust quarter-turn locking mechanism ensures a stable connection, preventing accidental disconnection.
- High-Conductivity Copper: Utilizes multi-strand, high-purity copper conductors for efficient power delivery and minimal heat buildup.
- Tour-Grade Durability: Features a heavy-duty, flexible outer jacket and integrated strain relief designed to withstand demanding professional use.
- Reliable Metal Contacts: Equipped with precision-machined, corrosion-resistant contacts for a consistent, low-resistance connection.
Why Choose Our Blue Power-In Lockable Cable Connector?
In professional environments, power cable failure is not an option. We understand the common frustrations with subpar cables, from intermittent connections that ruin a performance to safety hazards caused by poor construction. Our cables are engineered to solve these problems directly.
Built to North American Safety Standards
Stop worrying about overheating connectors that can melt under a sustained high-current load. Our connectors and cables are manufactured to meet rigorous electrical safety guidelines. This ensures proper heat dissipation and material integrity, preventing fire and electrical shock hazards when used within the specified ratings.
Made with High-Purity Conductors
Eliminate performance issues like voltage drop and intermittent power. We use properly gauged 12 AWG high-purity copper conductors to ensure your equipment receives stable voltage, even over longer runs. The secure internal terminations prevent power dropouts and audio crackles that plague lower-quality cables.
Durable and Reliable Construction
Forget flimsy plastic tabs that snap and stiff cables that are impossible to manage. Our connectors feature a durable locking mechanism designed for repeated use, and the flexible tour-grade jacket remains easy to coil and deploy, even in cooler temperatures, without kinking or damage.
Product Overview & Detailed Specifications
Product Description
This is a professional-grade power link cable designed for daisy-chaining power between audio, video, and lighting equipment. It features a blue power-inlet connector and a light grey power-outlet connector, providing a safe and intuitive system for power distribution on stage, in studios, and for temporary event setups.
Technical Specifications
| Attribute |
Detail |
| Connector Type |
Input: 3-conductor locking female cable connector (inlet type)
Output: 3-conductor locking female cable connector (outlet type) |
| Rated Current/Voltage |
20A / 125V AC |
| Wire Specification |
12 AWG, 3-Conductor, SJT-type jacket |
| Available Lengths |
3 ft, 5 ft, 10 ft, 15 ft, 25 ft, 50 ft |
| Color |
Connectors: Blue (Inlet) & Light Grey (Outlet), Cable: Black |
Key Features & Design Details
Smart, User-Friendly Design
The twist-to-lock feature provides a secure physical connection that won't come loose from vibrations. Color-coded blue (power-in) and light grey (power-out) connectors prevent accidental cross-mating of power circuits, enhancing safety during setup. The integrated strain relief protects the internal wiring from stress at the connector head, significantly increasing the cable's lifespan.
Available Colors and Lengths
The cable jacket comes in a standard, professional black. Connectors are colored blue for power input and light grey for power output to create an industry-standard, easy-to-manage power system. We offer a wide range of standard lengths from a short 3 ft jumper to a long 50 ft run to suit any application.
Compatible Devices & Important Safety Information
Extensive Compatibility List
This power jumper cable is ideal for linking power between a wide array of professional equipment, including:
- Active Loudspeakers and Powered Subwoofers
- Stage Lighting Fixtures like LED PARs, moving heads, and strobes
- Rack-mounted Power Amplifiers and Signal Processors
- LED Video Wall Panels
- Portable Power Distribution Boxes
- Special Effects Machines (foggers, hazers, etc.)
Important Usage Guidelines
For safe operation, always ensure connectors are fully twisted and locked into place. Never exceed the 20A / 125V rating of the cable assembly. Do not connect or disconnect while under load. Inspect cables for damage before each use. This is a power linking cable; the blue connector should only be connected to an appliance inlet and the grey connector to an appliance outlet.
Customization Options & Our Guarantee
Tailored to Your Specific Needs
We understand that one size doesn't fit all. We offer several customization options to create the perfect solution for your inventory:
- Custom Cable Lengths: Order cables cut to the exact length your application requires.
- Personalized Labeling: Add custom-printed heat-shrink labels with your company name, inventory ID, or cable length for easy management.
- Alternative Cable Jackets: Inquire about different jacket materials for enhanced flexibility or superior abrasion resistance.
Our Commitment to Your Satisfaction
- We provide 24/7 online customer support to promptly handle any questions or issues that arise with your order.
- In the event that your shipment contains items with quality-related defects, we are committed to providing a full replacement for the affected goods.
Power Your Performance with Confidence. Order Your Professional-Grade Locking Cables Today!
FAQ
Q1. Are you factory or trade company?
A: We are factory of more than 16 years export experience.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Samples?
A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.
Q5. What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How to ship out the cargo?
A: At your request, by sea, by express, all are available.
